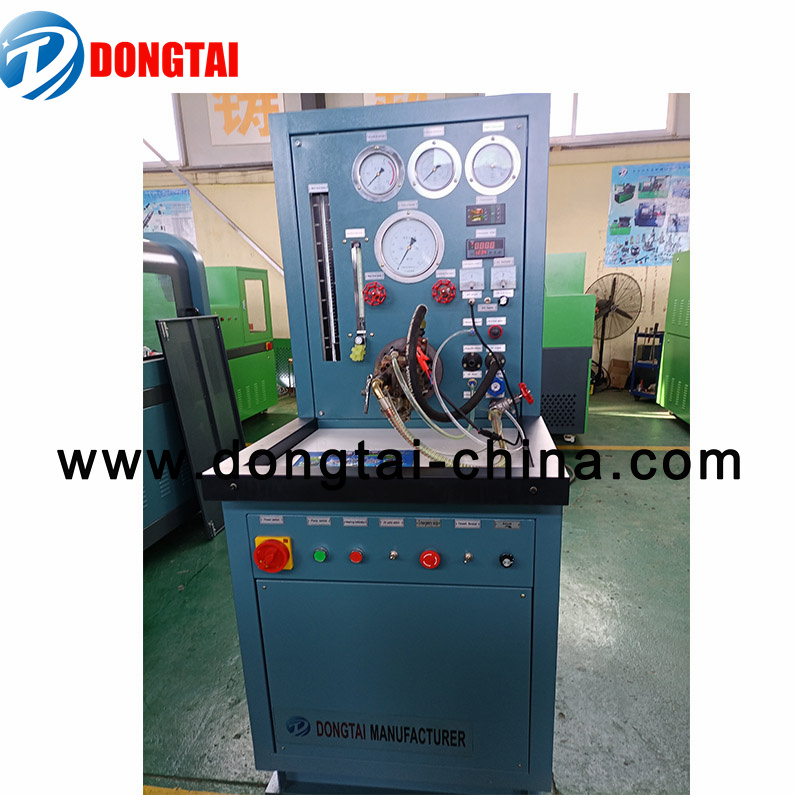

PT212 PT CUMMINS PUMP TEST BENCH
Content
Product Details:PT212 PT CUMMINS PUMP TEST BENCH
PT 212 PT fuel pump Test bench is special equipment used to provide test and calibration for CUMMINS PT fuel pump. It has abundant functions, high measure precision, and fast sampling.
For instance: Fit for: PT(G), PT(G)VS, PT(G)MVS, PTGSVS, PTGAFC, PTGAFC-VS, PTR, PTH-VS fuel pumps etc and damping ASA valve.
Functions
1.Gear pump pressure and vacuum test
2.Idle speed test
3.Weight assistant pressure test
4.Pressure and flow test in every check point
5.AFC test
6.Oil stopping test
7.Route test of throttle
8.Oil return test of throttle
9.ASA valve test
10.EFC test
11.Shut down valve test
Main technique parameter
1.Number of test pump 1 Set
2.Oil tank capacity 50 L
3.Oil type 0 Fuel Diesel
4.Temperature of oil 35+/-2
5.Oil test pressure 400 PSI
6.Air test pressure 250 PSI
7.Gear pump test pressure 600 PSI
8.Oil test demarcated flow 75-720, 710-2400 PPH
9.Oil test leak flow 10-760 ML/MIN
10.Air test flow 0-150 ML/MIN
11.Dimension of stand 710*900*1880
